Communications is proud to offer an economical and
easily to install alternative to the LPFM Broadcast

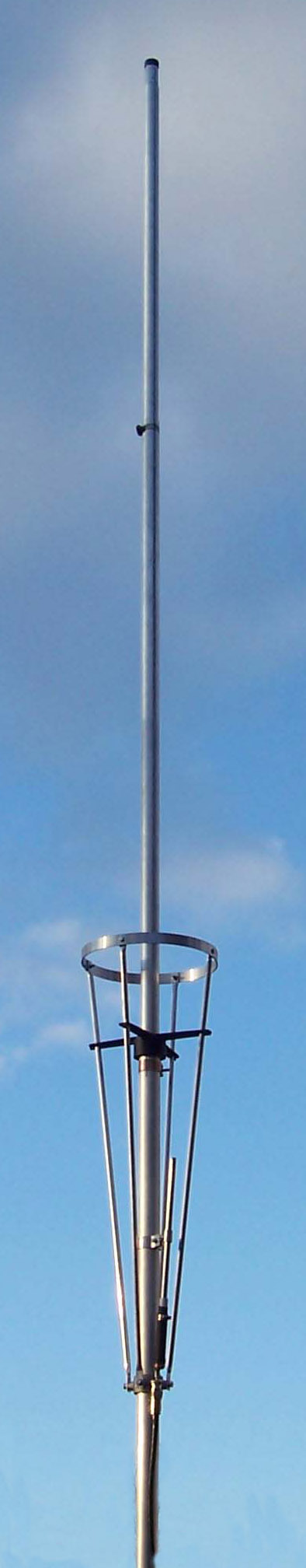

Dominator antenna is a high gain vertically polarized
.82 wave Coaxial J-pole Broadcast Antenna with a highly
efficient Teflon insulated gamma match that eliminates
any coils or matching transformers. This allows us to
shunt feed the .82 wave main radiator while keeping it
DC grounded for added lightning protection; additionally
this gives the antenna ability to handle high power
standard model is available with a gold pin Teflon
insulated weatherproof N or SO-239 connector recommended
for up to 1 KW input. Higher power versions are also
available such as our 3 kilowatt using a Teflon
7/16" DIN connector and heavy-duty gamma match.
important factor is the coaxial cone at the base of this
J-pole that allows us to go beyond the standard 1/2 wave
and 5/8 wave designs by forcing the angle of radiation
on the horizon.
Dominator is professionally manufactured using high
grade 6063 magnesium alloy aluminum tubing. This antenna
is currently in use by hundreds of stations around the
globe from Alaska to South America; it has proved itself
to withstand severe weather while providing a strong
Dominator also offers unique possibilities, like
or temporary situations due to the seamless
installation. Be prepared for the unexpected as changes
in weather patterns can cause a severe weather system to
strike at anytime.
spend thousands of dollars for a complex multi bay
antenna system only to encounter a difficult
installation process, that will provide poor coverage
Dominator is available in both 1 KW and 3 KW models.
Specifications and Photos Here
